understanding relay voltage rating: a key factor in choosing the right relay for your application
Release time:2025-03-04 14:33:39
When selecting relays for various electrical applications, one of the most crucial specifications to consider is the relay voltage rating. The voltage rating of a relay defines the maximum electrical voltage the relay can handle without compromising its performance or safety. It plays a pivotal role in determining the reliability and efficiency of the relay in specific circuits. In this article, we will explore what relay voltage ratings are, why they matter, and how choosing the correct voltage rating can prevent potential issues, with a particular focus on Meishuo relays, a brand known for producing high-quality, reliable relays for a variety of applications.

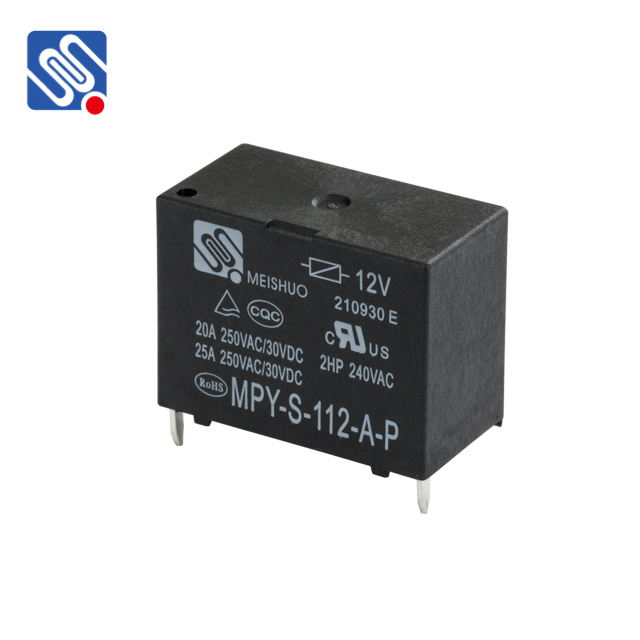

What is a Relay Voltage Rating?
A relay's voltage rating refers to the maximum voltage that can be applied to either the relay's coil (which is the input side) or its contact circuit (which is the output side). There are typically two key voltage ratings to be aware of:
Coil Voltage Rating: This is the voltage required to energize the relay coil and operate the switch. For example, a relay may have a coil voltage rating of 5V, 12V, or 24V. It's essential to match the coil voltage rating with the control circuit voltage to ensure proper activation.
Contact Voltage Rating: This indicates the maximum voltage that the relay's contacts can switch without arcing or damaging the contacts. For example, a relay might have a contact voltage rating of 250V or 480V. The contact voltage rating is important because it determines the relay's suitability for switching high-power devices, such as motors or industrial equipment.
