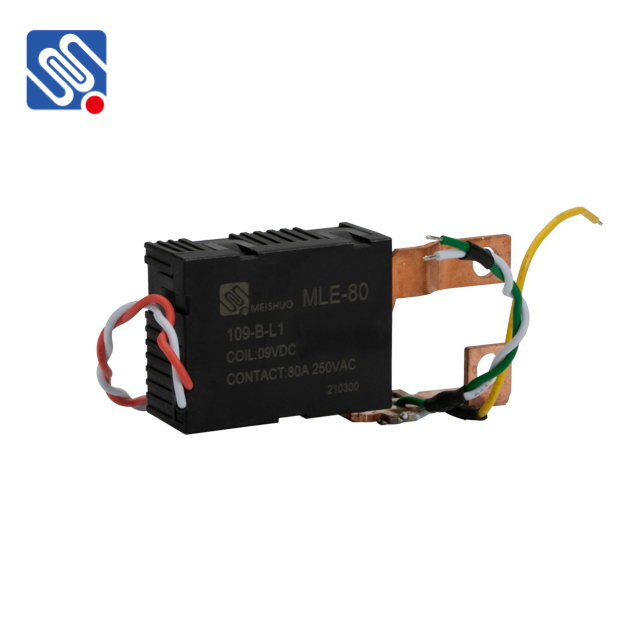

Latching relays, also known as bistable relays, are electronic components that maintain their state even after the power is turned off. Unlike regular relays, which require continuous power to stay activated, a latching relay uses a mechanical or electronic mechanism to "latch" its contacts into one of two stable positions. This feature makes latching relays incredibly useful in a variety of applications where low power consumption and long-term reliability are required.
What is a Latching Relay?
A latching relay functions by having two stable states: one for its energized position and one for its de-energized position. Once a pulse is applied to the relay’s coil, it moves the relay contacts to the energized position. The relay stays in this position without requiring any further input, even after the power is turned off. To change the state, another pulse is applied to the coil, which moves the contacts back to the de-energized state.
This characteristic allows the relay to maintain its state without consuming continuous power, making it energy-efficient. Latching relays are particularly advantageous in systems where power conservation is crucial, such as in battery-powered devices or applications with limited energy sources.
