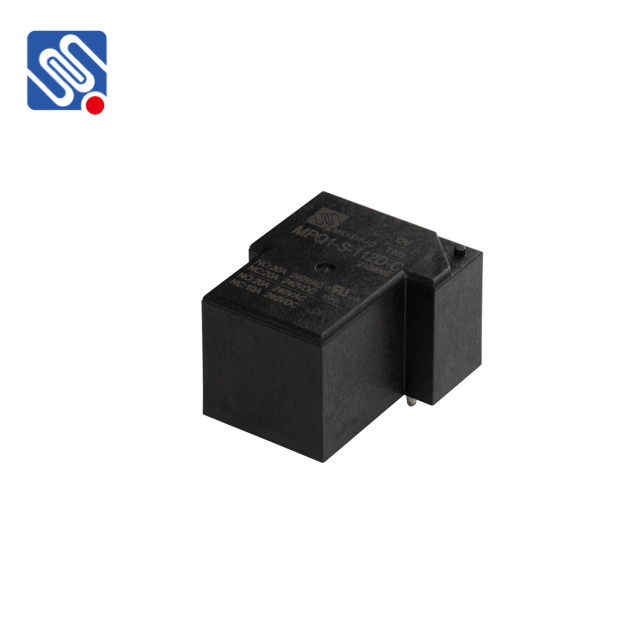

understanding the 12v dc relay： functionality, applications, and advantages
Release time:2026-01-19 21:25:32
The 12V DC relay is an essential component in electrical systems, renowned for its ability to control larger currents using a smaller control signal. As a fundamental electromechanical switch, it plays a critical role in a wide array of applications, ranging from automotive systems to home automation setups. In this article, we will explore the functionality, types, applications, and advantages of the 12V DC relay, providing a comprehensive understanding of this vital electrical device.
Functionality of a 12V DC Relay
At its core, a relay operates on the principle of electromagnetic induction. The 12V DC relay comprises several key components： a coil, an armature, a spring, and one or more sets of contacts. When a 12V DC control voltage is applied to the coil, it creates a magnetic field that attracts the armature. This movement changes the position of the contacts, either opening or closing the circuit connected to the relay.
Relays can be categorized into different types based on their design and functionality. The most common types include：
Single Pole Single Throw (SPST)： This type has one set of contacts, allowing for a simple on-off control of a device.
