understanding latching relay: key features and applications
Release time:2025-04-15 13:21:41
A latching relay is an electromechanical device widely used in various electrical and electronic systems for switching applications. Unlike standard relays, a latching relay does not require continuous electrical power to maintain its position once it is activated. This unique characteristic makes latching relays highly efficient and ideal for energy-sensitive applications where power consumption needs to be minimized. In this article, we will explore the working principle, types, key features, and common applications of latching relays.

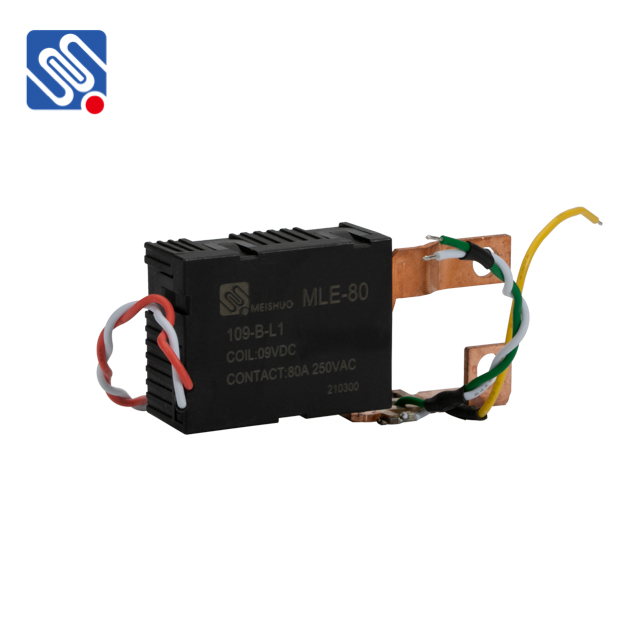

What is a Latching Relay?
A latching relay is a type of relay that retains its position (either in the “on” or “off” state) even when the power supply to the relay is cut off. This makes it different from a conventional relay, which returns to its default position when the power is switched off. The latching relay uses mechanical components like a permanent magnet or a mechanical latch that holds the relay in the activated position. Therefore, once it is set, the relay will remain in that state without requiring constant current.
Working Principle of Latching Relay
The working principle of a latching relay is based on a two-coil system. One coil is used to switch the relay to the "set" position, and the other coil is used to reset it to the "reset" position. When the set coil is energized, the relay switches to the active state, and the latch mechanism holds it there. When the reset coil is energized, the relay is returned to its default state. This unique design allows the relay to function without maintaining continuous power, thus saving energy and reducing the strain on electrical circuits.
