understanding the relay 12v: applications, working principle, and benefits
Release time:2025-03-19 02:09:22
A relay is an electrical device used to control a high-power circuit with a low-power signal. A 12V relay, specifically, operates using a 12-volt power supply and is commonly used in various applications, from automotive systems to industrial machinery. Understanding how a relay works and its practical uses can significantly help in designing or troubleshooting electronic circuits. This article explores the working principle of a 12V relay, its key features, and the benefits it provides in different fields.

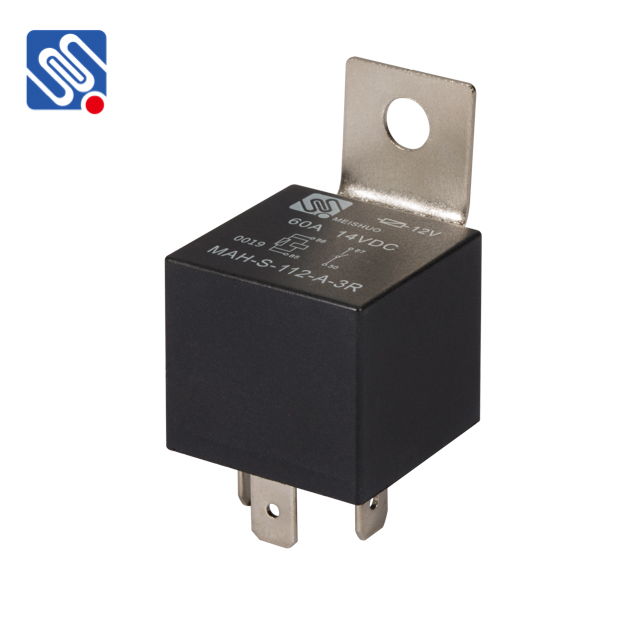

What is a Relay 12V?
A relay is an electromagnetic switch that allows a low-voltage signal to control a higher-voltage circuit. In the case of a 12V relay, it means that the relay coil is designed to operate with a 12-volt input. When current flows through the coil, it creates a magnetic field that pulls a switch to open or close the connected circuit. This action is often used to control the flow of electricity to larger devices such as motors, lights, or solenoids.
Working Principle of a 12V Relay
The basic operation of a 12V relay consists of a coil, a contact arm, and an armature. When voltage is applied to the coil, it generates a magnetic field that pulls the armature towards the coil, causing the switch to either open or close. This action can control circuits that require higher voltages or currents, allowing the low-power control circuit to safely activate high-power devices.
