Advantage 1: It has 30A Contact switching capability.
Advantage 2: It can connect terminal quickly
Advantage 3: It is available in two types: sealed and dust protected available.
Advantage 4: In extreme high or low temperature environments, it can still maintain right performance.(Limited -40℃ to 85 ℃)
Contact Parameters
| Contact Arrangement | 1A | |
| Contact Material | Silver Alloy | |
| Contact Resistance(Initial) | ≤100mΩ(1A 6VDC) | |
Rated Load（Resistive） | 30A 250VAC | |
| Max.Switching Current | 30A | |
| Max.Switching Voltage | 250VAC | |
| Max.Switching Power | 7500VA | |
| Electrical Life | 1x105次OPS | |
| Mechanical Life | 1x106次OPS | |
Characteristics
| Insulation Resistance | 1000MΩ(500VDC) | |
Dielectric Strength | Between Coil & Contacts: 4000VAC 1min | |
| Between Open Contacts: 1200VAC 1min | ||
| Operate Time | ≤20ms(DC type ) | |
| Reset Time | ≤5ms(DC type ) | |
| Ambient Temperature | -40°C ~+85C | |
| Vibration | 10Hz~55Hz 1.5mm(DA) | |
Shock | Functional | 98m/s2(10G) |
| Destructive | 980m/s2(100G) | |
| Terminal Form | QC，PCB 式 PCB type | |
| Construction | Plasticsealed type Dust cover type | |
| Unit Weight | Approx.54g | |

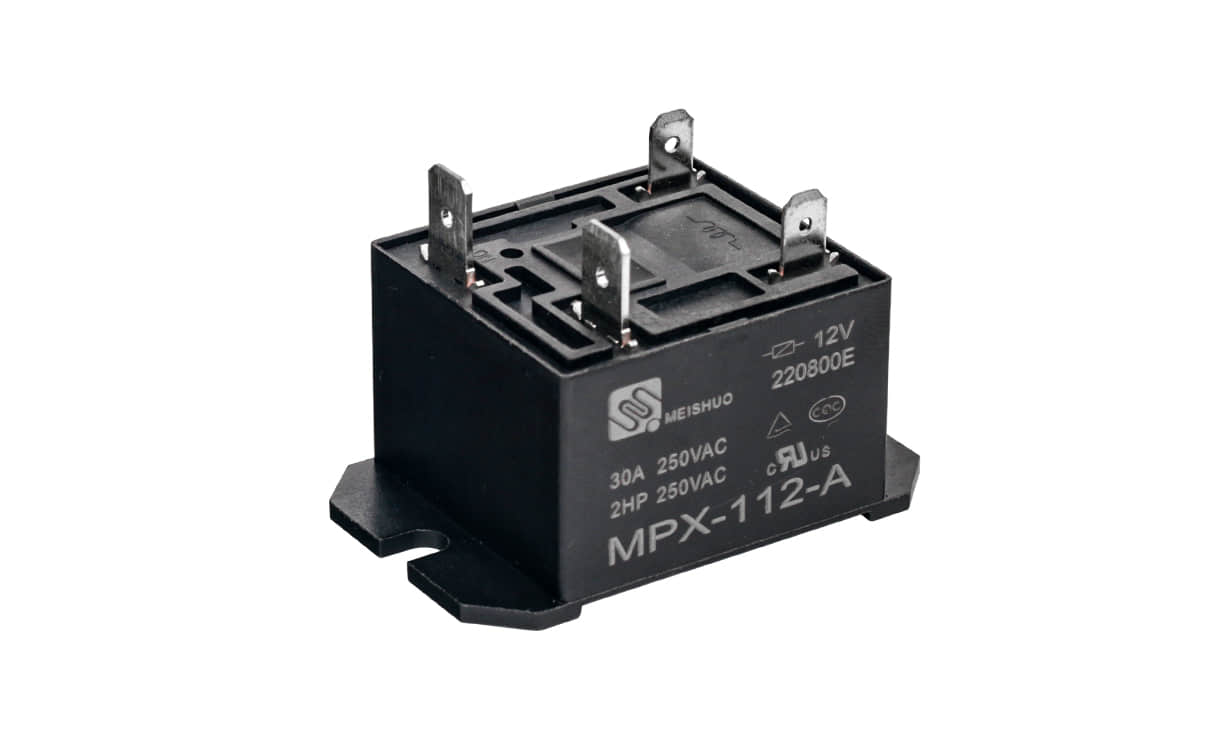

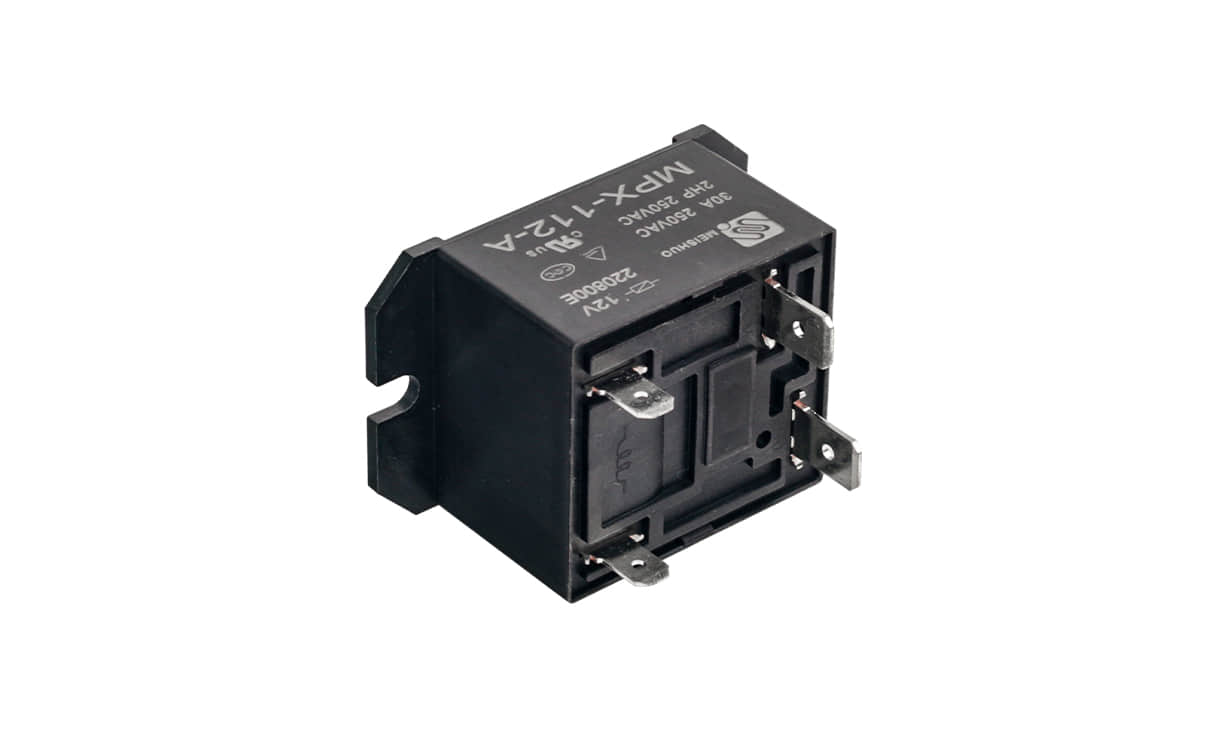

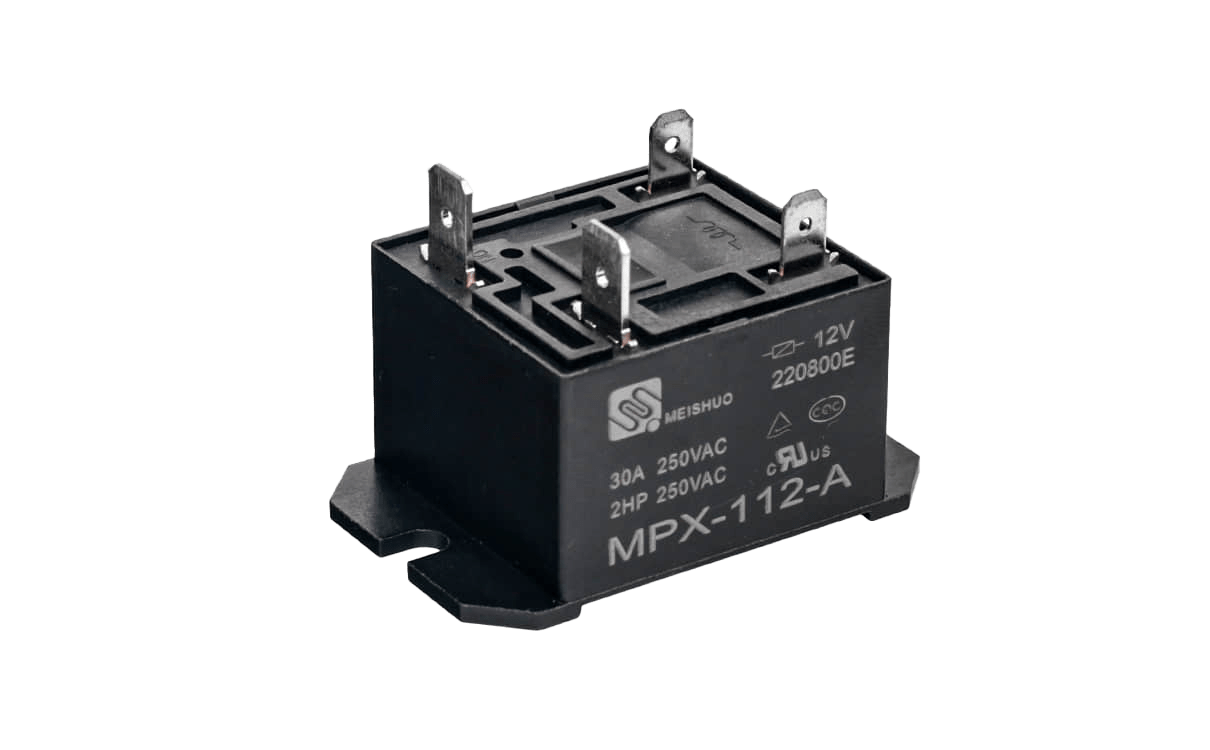

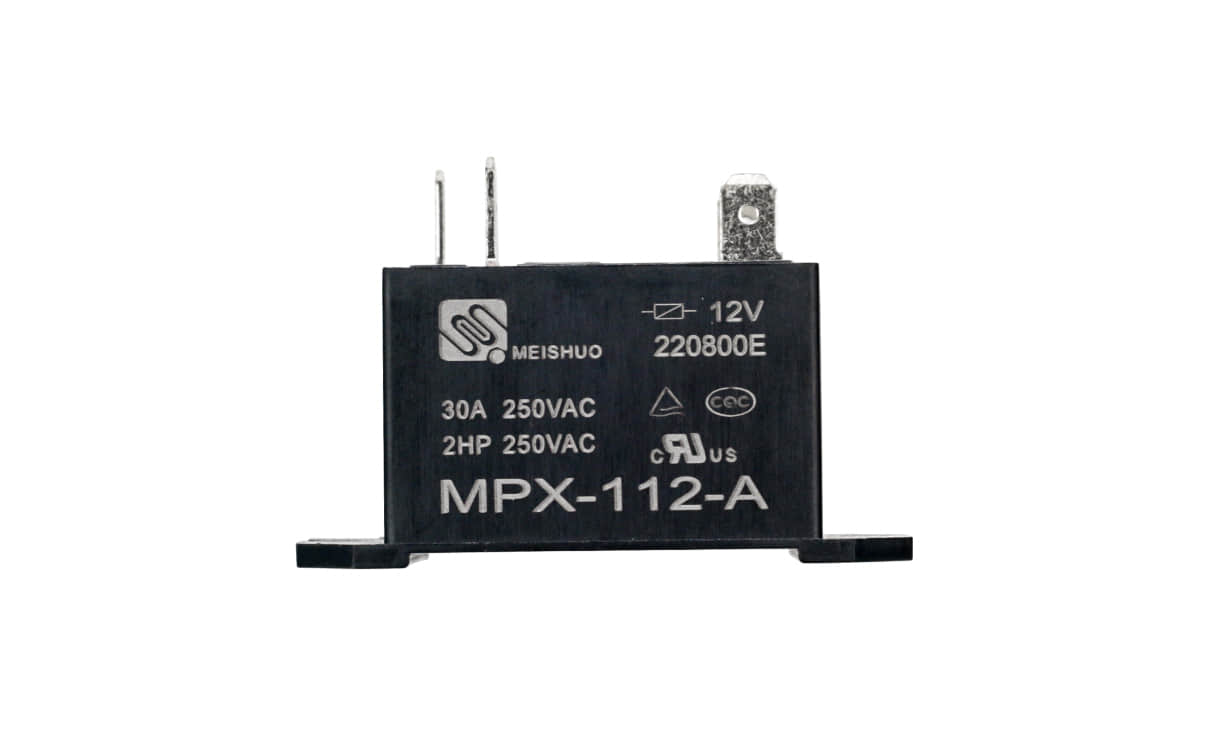

The MPX relays are suitable for a variety of electrical control applications such as the popular smart home industry, industrial controls, switches and other infrastructure. When using MPX relays, we must first select the right equipment for the correct contact connection according to the actual situation to ensure that it can meet the requirements of the circuit at the same time long-term operation. Secondly, when installing the relay, it should be chosen to stay away flammable, explosive, humid and corrosive environments to prevent unnecessary losses caused by damage to the relay due to environmental effects. Wiring should be installed in strict accordance with the circuit diagram to ensure that the circuit does not have safety problems. In case of abnormal conditions, the device should be stopped immediately, power off in time, regular maintenance and repair to ensure the operation of the entire circuit
We offer a one-year product warranty. If any issues arise within this period due to product defects, we will provide free replacements or refunds.
50 pcs/inner box
5 plastic boxes/inner box,2inner boxes/master box
500 pcs/master box
MEAS:36*22.5*14cm G.W.:7.2KGS N.W.:6.2KGS
We can customize the packaging according to your needs.
