Advantage 1: It has 40A Contact switching capability.
Advantage 2: It dielectric withstand voltage between contact and coil is 4KV.
Advantage 3: With two sets of normally open contects.
Advantage 4: UL insulation class: Class F insulation class if available
Contact Parameters
| Contact Arrangement | 2A | |
| Contact Material | Silver Alloy | |
| Contact Resistance(初始Initial) | ≤100mΩ(1A 24VDC) | |
Rated Load（Resistive） | 40A 277/250/125VAC 30A 277/250/125VAC 3HP 240VAC 1.5HP 120VAC | |
| Max.Switching Current | 40A | |
| Max.Switching Voltage | 277VAC | |
| Max.Switching Power | 11080VA | |
| Electrical Life | 3x104次OPS | |
| Mechanical Life | 1x106次OPS | |
Characteristics
| Insulation Resistance | 1000MΩ(500VDC) | |
Dielectric Strength | Between Coil & Contacts: 4000VAC 1min | |
| Between Open Contacts: 2000VAC 1min | ||
| Between Contact Groups: 2000VAC 1min | ||
| Operate Time | ≤30ms | |
| Reset Time | ≤30ms | |
| Ambient Temperature | -55°C ~+70°C | |
| Vibration | 10Hz~55Hz 1.5mm(DA) | |
Shock | Functional | 98m/s2(10G) |
| Destructive | 980m/s2(100G) | |
| Terminal Form | Bolt type | |
| Construction | Sealed Dust cover type | |
| Unit Weight | 约Approx.120g | |

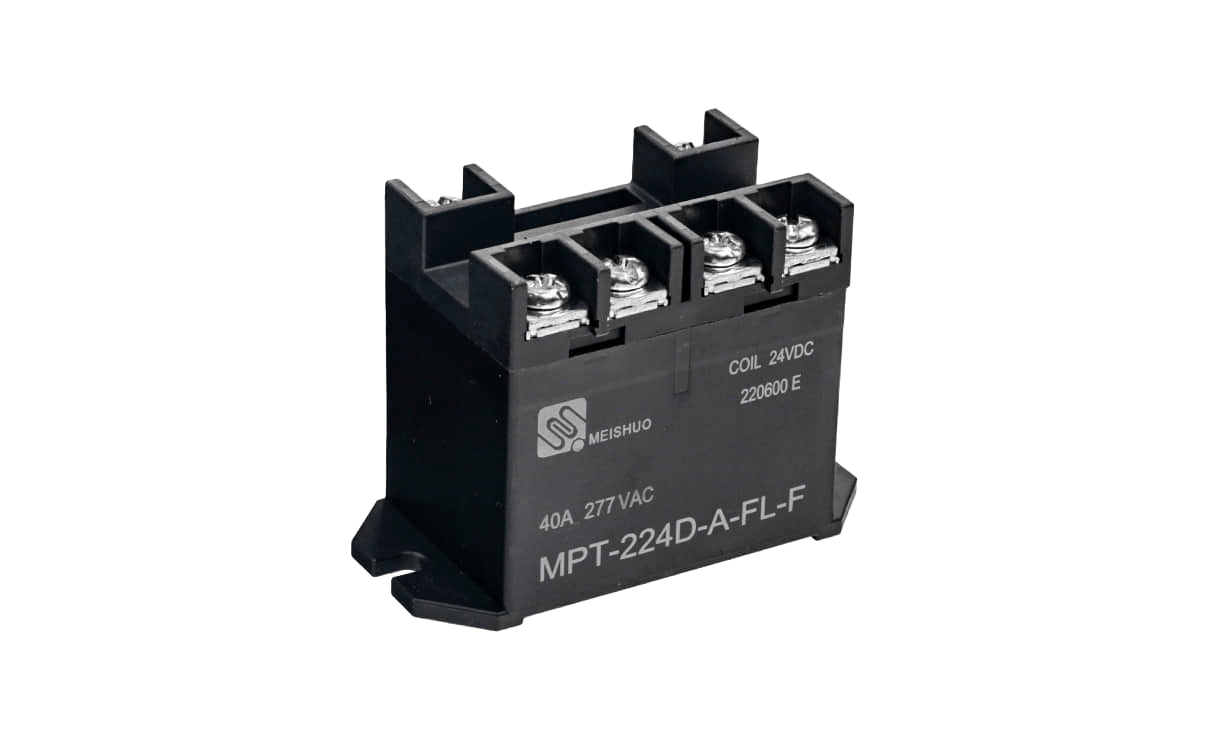

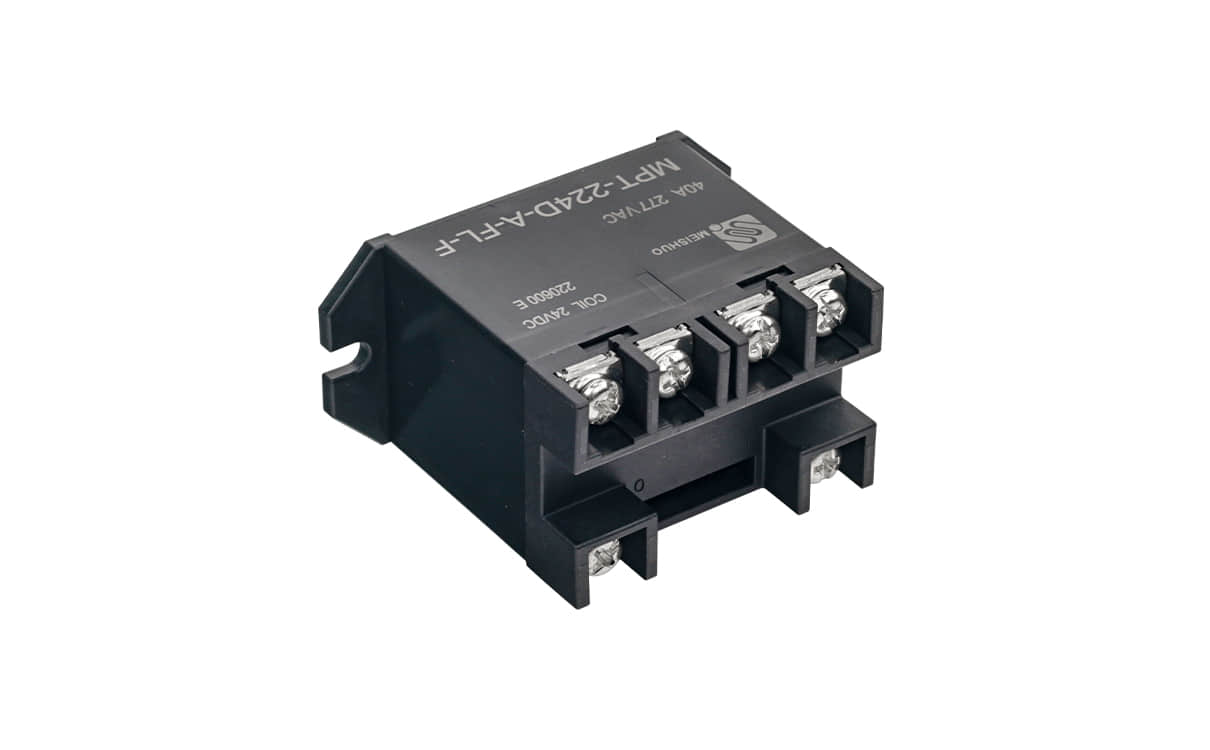

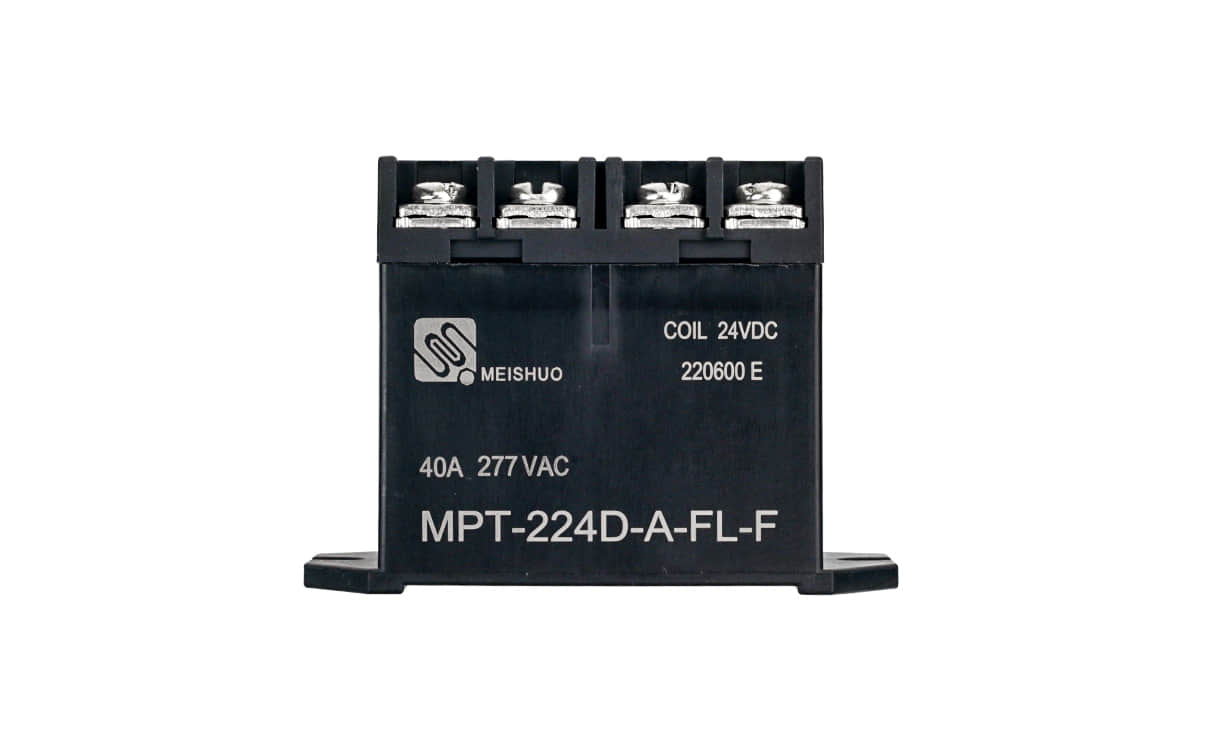

The MPT relays are suitable for a variety of electrical control applications such as the popular smart home industry, industrial controls, switches and other infrastructure. When using MPT relays, we must first select the right equipment for the correct contact connection according to the actual situation to ensure that it can meet the requirements of the circuit at the same time long-term operation. Secondly, when installing the relay, it should be chosen to stay away flammable, explosive, humid and corrosive environments to prevent unnecessary losses caused by damage to the relay due to environmental effects. Wiring should be installed in strict accordance with the circuit diagram to ensure that the circuit does not have safety problems. In case of abnormal conditions, the device should be stopped immediately, power off in time, regular maintenance and repair to ensure the operation of the entire circuit
We offer a one-year product warranty. If any issues arise within this period due to product defects, we will provide free replacements or refunds.
50 pcs/inner box
5 plastic boxes/inner box,2inner boxes/master box
500 pcs/master box
MEAS:36*22.5*14cm G.W.:7.2KGS N.W.:6.2KGS
