Advantage 1: 10A Contact switching capability.
Advantage 2: 1 Form A and 1 Form C configurations.
Advantage 3: Sealed and flux proofed types available
Advantage 4: It has standard PCB layout
Contact Parameters
| Contact Arrangement | 1A,1B,1C | |
| Contact Material | Silver Alloy | |
| Contact Resistance(Initial) | ≤100mΩ(1A 6VDC) | |
Contact Rating(Res. load) | Standard Type | NO:10A250VAC NO: 5A 250VAC/30VDC |
| Sensitive Type | NC: 3A/5A 250VAC/30VDC | |
| Max.Switching Current | 10A | |
| Max.Switching Voltage | 250VAC/30VDC | |
| Max.Switching Power | 2500VA/300W | |
| Electrical Life | 1x105次OPS | |
| Mechanical Life | 1x106次OPS | |
Characteristics
| Insulation Resistance | 1000MΩ(500VDC) | |
Dielectric Strength | Between Coil & Contacts: 4000VAC 1min | |
| Between Open Contacts: 1000VAC 1min | ||
| Operate Time | ≤8ms | |
| Release Time | ≤5ms | |
| Ambient Temperature | -40°C ~+105C | |
| Vibration | 10Hz~55Hz 1.5mm(DA) | |
Shock | Functional | 98m/s2(10G) |
| Destructive | 980m/s2(100G) | |
| Terminal Form | PCB | |
| Construction | Sealed Flux Proofed | |
| Unit Weight | Approx.7g | |
The MPDN relay is suitable for various electrical control scenarios, such as industrial automation and household appliances. Its advantages include high reliability, fast response, strong durability, low power consumption, easy installation, and maintenance. When using the MPDN relay, first, choose the appropriate model according to actual needs to ensure that its electrical parameters match the circuit requirements. Then, when installing the relay, choose a suitable location, away from high temperatures, moisture, and corrosive environments, and maintain good ventilation conditions as much as possible. During wiring, strictly follow the wiring diagram to ensure correct wiring and reliable contact. Pay attention to maintaining a suitable working environment temperature during operation, regularly inspect and maintain the relay, and prevent safety issues. If any abnormalities occur, stop using it promptly and conduct inspection and repairs to ensure the safe and stable operation of the relay and circuit.
We offer a one-year product warranty. If any issues arise within this period due to product defects, we will provide free replacements or refunds.

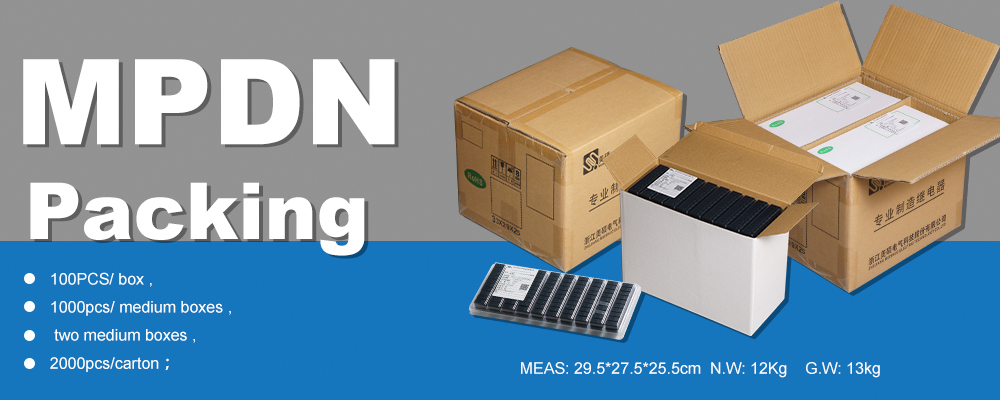

100 PCS/ box
1000pcs/ medium boxes
Two medium boxes
MEAS:29.5*27.5*25.5cm G.W.:13KG N.W.:12KG
We can customize the packaging according to your needs.
